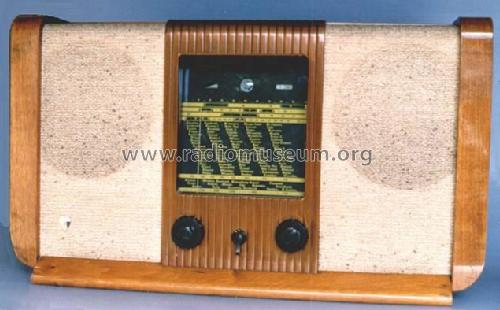

750U; Radione RADIO (ID = 604967) Radio 750U; Radione RADIO (ID = 31190) Radio
750U; Radione RADIO (ID = 2285) Radio 750U; Radione RADIO (ID = 622819) Radio
750U; Radione RADIO (ID = 622820) Radio
Use red slider bar for more.
750U; Radione RADIO (ID = 604966) Radio
Radione RADIO: 750U [Radio] ID = 604966 875x655
Select picture or schematic to display from thumbnails on the right and click for download.
For model 750U, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: UAF42 UCH42 UAF42 UAF42 UM4 UAF42 UL41 UL41
Main principle Superhet with RF-stage; ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, several Short Wave.
Details
Power type and voltage AC/DC-set
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 750U - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 690 x 400 x 275 mm / 27.2 x 15.7 x 10.8 inch
Notes UY41,UY41; 4 x KW
Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Price in first year of sale 2'900.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
