For model AB3, Radione (RADIO Nikolaus Eltz); Wien:

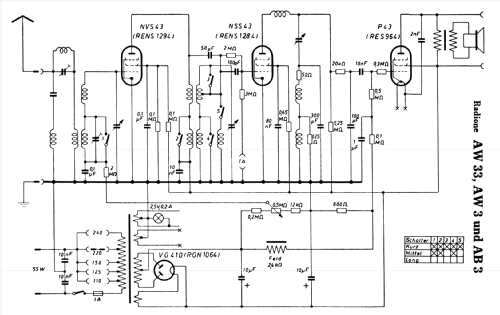

Radione AB3

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: NVS43 or RENS1294 NSS43 or RENS1284 P43 or RES964 VG410 or RGN1064
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: AB3 - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 312 x 405 x 200 mm / 12.3 x 15.9 x 7.9 inch
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk (?)


All listed radios etc. from Radione (RADIO Nikolaus Eltz); Wien
Here you find 513 models, 356 with images and 319 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Radione RADIO: AB3
Threads: 1 | Posts: 1
Hits: 1782     Replies: 0
radione: AB3
Gerhard Heigl
22.Jul.02
  1 Betrieb: 150V, 2V! BHT: 315x405x200mm.
