• Year
  • 1934/1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 10263

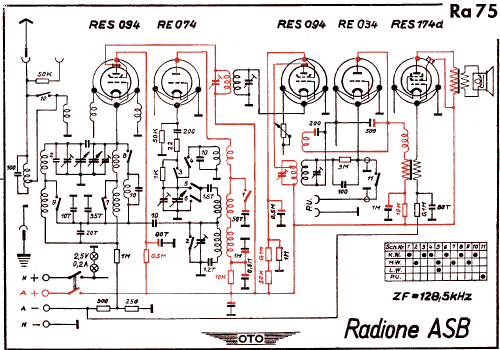

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 128 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • from Radiomuseum.org
  • Model: ASB - Radione RADIO Nikolaus Eltz;
  • Notes
  • B442 statt A442 möglich;ZF128,5
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Lange + Schenk

 Collections | Museums | Literature

 Forum

Forum contributions about this model: Radione RADIO: ASB

Threads: 1 | Posts: 1

orig.Preis 465 S

Gerhard Heigl, 09.Oct.02
