AW45 mit RGN1064

AW45; Radione RADIO (ID = 2287496) Radio
AW45; Radione RADIO (ID = 2036377) Radio AW45; Radione RADIO (ID = 2036378) Radio
AW45; Radione RADIO (ID = 2036379) Radio AW45; Radione RADIO (ID = 2036380) Radio
AW45; Radione RADIO (ID = 2036381) Radio AW45; Radione RADIO (ID = 2036382) Radio
AW45; Radione RADIO (ID = 2036383) Radio AW45; Radione RADIO (ID = 2036384) Radio
Use red slider bar for more.

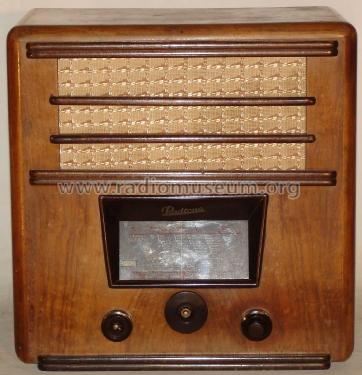

AW45; Radione RADIO (ID = 2036377) Radio
Radione RADIO: AW45 [Radio] ID = 2036377 1400x1448
Select picture or schematic to display from thumbnails on the right and click for download.
For model AW45 mit RGN1064, Radione (RADIO Nikolaus Eltz); Wien:
2 Knöpfe fehlen

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Year: 1936 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF7 AB2 AL4 RGN1064
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 105-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: AW45 [mit RGN1064] - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 370 x 374 x 228 mm / 14.6 x 14.7 x 9 inch
Net weight (2.2 lb = 1 kg) 10.4 kg / 22 lb 14.5 oz (22.907 lb)

Model page created by Hartmut Völler. See "Data change" for further contributors.



All listed radios etc. from Radione (RADIO Nikolaus Eltz); Wien
Here you find 513 models, 355 with images and 317 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
