Baby ; Radione RADIO (ID = 467322) Radio
Radione RADIO: Baby [Radio] ID = 467322 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baby, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK92 DF91 DAF91 DL94
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1,5 & 75 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Baby - Radione RADIO Nikolaus Eltz;
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 216 x 156 x 52 mm / 8.5 x 6.1 x 2 inch
Notes Dazugehörendes Netzteil für Wechselstrom ATS 240.-
Parallelmodell zu Grundig Boy Junior.
Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Price in first year of sale 780.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

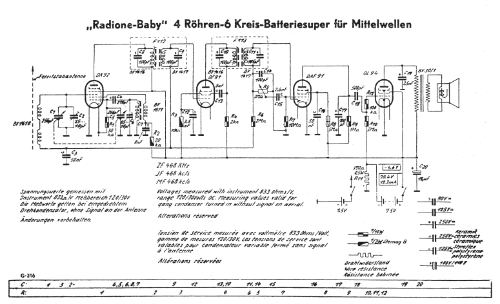

Literature/Schematics (1) -- Schematic
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Radione (RADIO Nikolaus Eltz); Wien
Here you find 513 models, 355 with images and 317 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Radione RADIO: Baby
Threads: 1 | Posts: 1
Hits: 1896     Replies: 0
radione: Baby
Gerhard Heigl
16.Jul.02
  1 Orig.Preis: 780S, entspricht im Wesentlichen dem Grundig Boy Junior (Lizenzerzeugnis)
