Merkur Register U UM80, UM81

Merkur Register U ; Radione RADIO (ID = 169946) Radio
Use red slider bar for more.
Merkur Register U ; Radione RADIO (ID = 169946) Radio

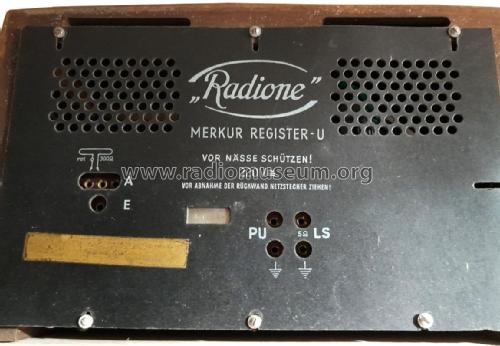

Radione RADIO: Merkur Register U [Radio] ID = 169946 676x517
Select picture or schematic to display from thumbnails on the right and click for download.
For model Merkur Register U UM80, UM81, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Brand

Eltz
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UCC85 UCH81 UF89 UABC80 UM80 or UM81 UL84 UY85
schematic requested
Main principle Superheterodyne (common); ZF/IF 459 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Merkur Register U [UM80, UM81] - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 414 x 255 x 212 mm / 16.3 x 10 x 8.3 inch
Notes

Siehe auch Radione Merkur Register U mit UM84.

Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Price in first year of sale 1'560.00 ATS
Mentioned in Radioschau Heft 8/1959

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
