Vollautomat RT159 mit EF183

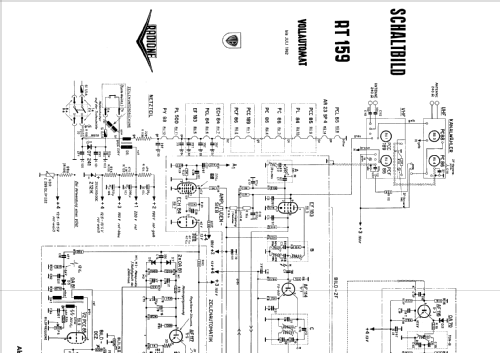

Vollautomat RT159; Radione RADIO (ID = 256103) Television

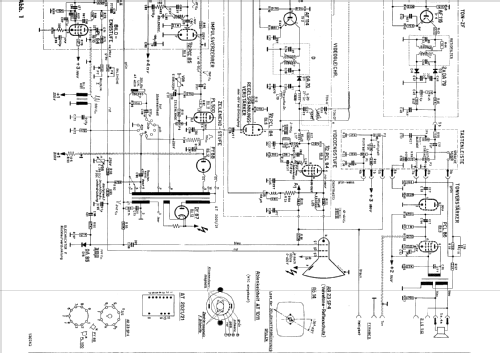

Vollautomat RT159; Radione RADIO (ID = 256104) Television
Vollautomat RT159; Radione RADIO (ID = 171487) Television
Use red slider bar for more.
Vollautomat RT159; Radione RADIO (ID = 171487) Television
Radione RADIO: Vollautomat RT159 [Television] ID = 171487 576x416
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vollautomat RT159 mit EF183, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Brand

Eltz
Year: 1962 Category: Television Receiver (TV) or Monitor
Valves / Tubes 14: PC86 PC88 PCC189 PCF86 EF183 PCL84 PCL86 ECH84 PCC85 PL84 PL500 PY88 DY87 23SP4
Semiconductors (the count is only for transistors) 5: AF114 AF114 AF116 AF116 AF117
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Vollautomat RT159 [mit EF183] - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 720 x 506 x 380 mm / 28.3 x 19.9 x 15 inch
Notes Band I+III. Auch mit eingebautem UHF-Tuner Band IV, dann 14 Röhren und Preis 7150.- ATS.
Price in first year of sale 6'550.00 ATS
Mentioned in Radioschau Heft 4/1962
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
