• Country
• Norway

• Manufacturer / Brand
• Radionette; Oslo

• Year
• 1956

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 159935

• Number of Tubes
• 5

• Valves / Tubes
• EF86 ECL113 EF86 EL84 EM71

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 210; 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

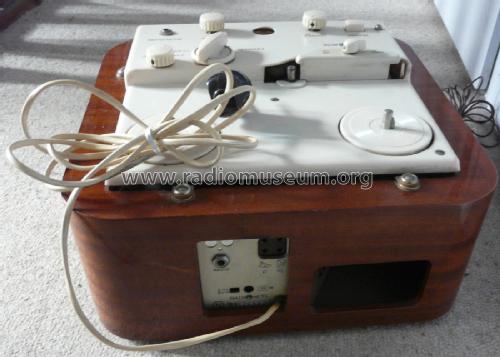

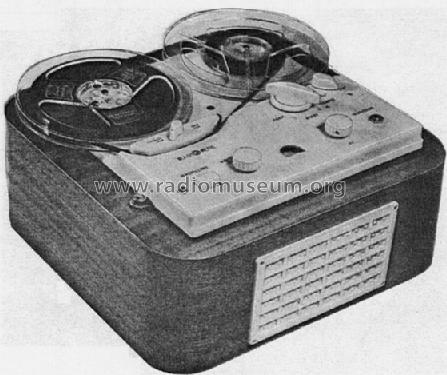

• Model: Båndopptaker B4 - Radionette; Oslo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 360 x 210 x 340 mm / 14.2 x 8.3 x 13.4 inch

• Notes
• 2 track, reel-to-reel, 3 3/4 ips,

• Author
• Model page created by Ernst Rykkje. See "Data change" for further contributors.
