Menuett Halbkreisskala, ECL113

Menuett ; Radionette; Oslo (ID = 364427) Radio
Menuett ; Radionette; Oslo (ID = 2012736) Radio Menuett ; Radionette; Oslo (ID = 2012740) Radio
Menuett ; Radionette; Oslo (ID = 2012739) Radio Menuett ; Radionette; Oslo (ID = 2012738) Radio
Menuett ; Radionette; Oslo (ID = 1092025) Radio Menuett ; Radionette; Oslo (ID = 1092026) Radio
Menuett ; Radionette; Oslo (ID = 1092027) Radio Menuett ; Radionette; Oslo (ID = 1092028) Radio
Menuett ; Radionette; Oslo (ID = 1092029) Radio Menuett ; Radionette; Oslo (ID = 1092030) Radio
Use red slider bar for more.
Menuett ; Radionette; Oslo (ID = 2012736) Radio
Radionette; Oslo: Menuett [Radio] ID = 2012736 1400x935
Select picture or schematic to display from thumbnails on the right and click for download.
For model Menuett Halbkreisskala, ECL113, Radionette; Oslo

Country:  Norway
Manufacturer / Brand:  Radionette; Oslo
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner

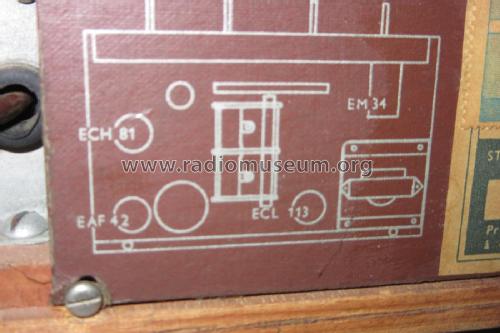

Valves / Tubes 4: ECH81 EAF42 ECL113 EM34
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details

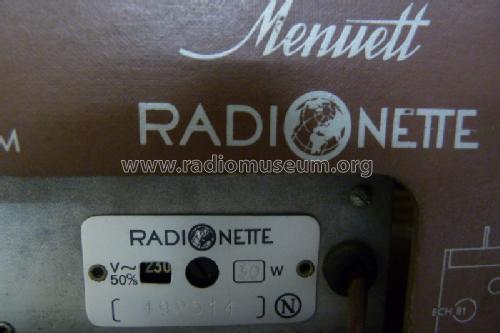

Power type and voltage Alternating Current supply (AC) / 110,130, 150, 210, 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Menuett [Halbkreisskala, ECL113] - Radionette; Oslo
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 280 x 180 mm / 20.5 x 11 x 7.1 inch
Notes Radionette Menuett;
Langbølge LB:
Mellombølge MB:
Fiskeribølge FB (Marine Band):
Kortbølge KB:
Ext. speaker terminals & pick up in.
Fitted with white knobs.
Net weight (2.2 lb = 1 kg) 7.4 kg / 16 lb 4.8 oz (16.3 lb)
Price in first year of sale 397.00 NKr

Model page created by Ernst Rykkje. See "Data change" for further contributors.
