Signalverfolger Testmaster

Radiopraktiker, Wien

  • Year
  • 1959
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 169654

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • Power out
  • 1 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Signalverfolger Testmaster - Radiopraktiker, Wien
  • Notes

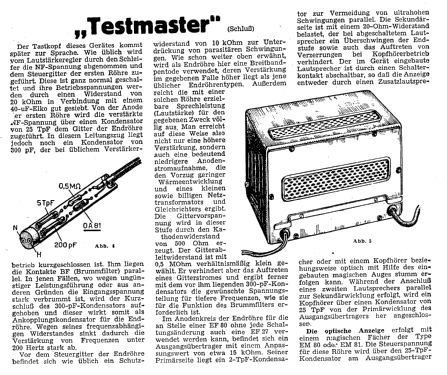

  • Signalverfolger, Bauanleitung aus der Zeitschrift Radiopraktiker Jahrgang 1959 Heft 13 und 14. Abmessungen und Gewicht sind vom jeweilig verwendeten Material abhängig.
  • Source of data
  • - - Data from my own collection
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Hans Haas. See "Data change" for further contributors.
