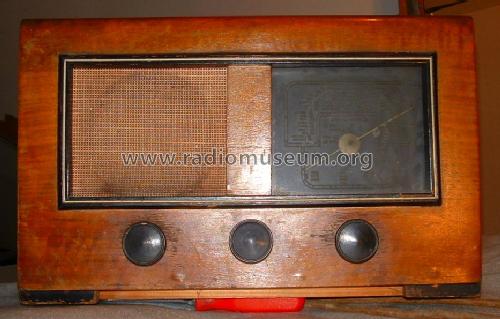

Hr. Botev - Хр. Ботев M 463 AC, 4 Loktal tubes

Radioprom; Sofia

  • Year
  • 1947 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 223460

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 150/220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Hr. Botev - Хр. Ботев M 463 [AC, 4 Loktal tubes] - Radioprom; Sofia
  • Shape
  • Tablemodel, low profile (big size).
