Oasa
Use red slider bar for more.

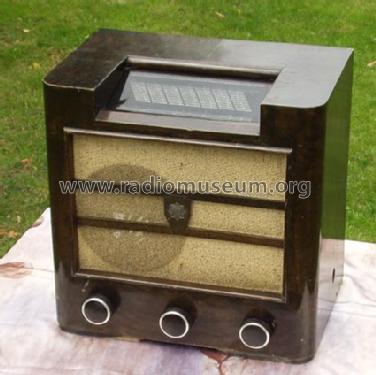

Radiotechna, spol. s: Oasa [Radio] ID = 344105 426x424
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Kresl & spol, CS | ||||
|---|---|---|---|---|---|
Brand |
Telefunken Praha | ||||
| Year: 1938/1939 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: KK2 KF3 KBC1 KC3 KDD1 |
| Main principle | Superheterodyne (common); ZF/IF 484 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Storage and/or dry batteries / 2, 4.5, 130 Volt |
| Loudspeaker | Permanent or electro-dynamic (moving coil), system not known yet. |
| Power out | |
| from Radiomuseum.org | Model: Oasa - Radiotechna, spol. s r. o., |
| Material | Wooden case |
| Price in first year of sale | 2'390.00 Kc |
| External source of data | Erb |
| Source of data | Ceskoslovenske prijimace 1933-1945, Baudys 1947 |
