Song ; Radiotechna, spol. s (ID = 1597655) Radio
Radiotechna, spol. s: Song [Radio] ID = 1597655 933x622

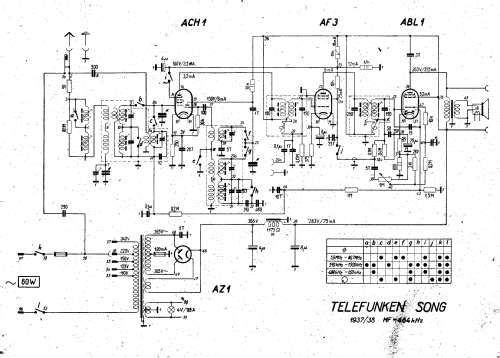

Select picture or schematic to display from thumbnails on the right and click for download.
For model Song, Radiotechna, spol. s r. o., Praha-Prelouc

Country:  Czechoslovakia
Manufacturer / Brand:  Radiotechna, spol. s r. o., Praha-Prelouc
alternative name

Kresl & spol, CS
Brand
Telefunken Praha
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ACH1 AF3 ABL1 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 484 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Song - Radiotechna, spol. s r. o.,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 575 x 342 x 265 mm / 22.6 x 13.5 x 10.4 inch
Price in first year of sale 1,860.00 Kc
Collectors' prices
External source of data Erb
Source of data Ceskoslovenske prijimace 1933-1945, Baudys 1947


All listed radios etc. from Radiotechna, spol. s r. o., Praha-Prelouc
Here you find 69 models, 62 with images and 52 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
