• Country
• France

• Manufacturer / Brand
• Radio Voltaire; Paris

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119697

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM4 GZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

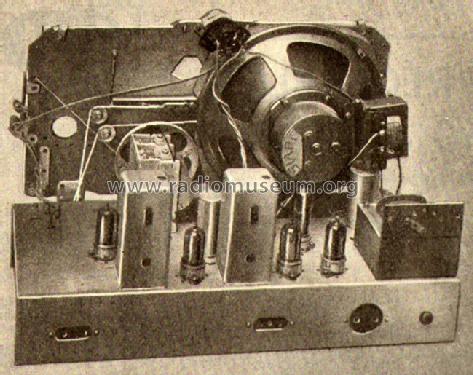

• Model: Comète 52 - Radio Voltaire; Paris

• Shape
• Tablemodel, low profile (big size).

• Notes

• 4 gammes d'ondes:GO, PO, OC et BE (bande étalée 49 m). Cadran Star L 280 avec bafle isorel. Contre-réaction variable.

  Prix prêt à cabler avec lampes.

• Price in first year of sale
• 17,500.00 FRF

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur (Nov. 1951)

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
