Super 7/651-An Valgifson
Radio Watt (Valgifson); Barcelona
- Country
- Spain
- Manufacturer / Brand
- Radio Watt (Valgifson); Barcelona
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 273401

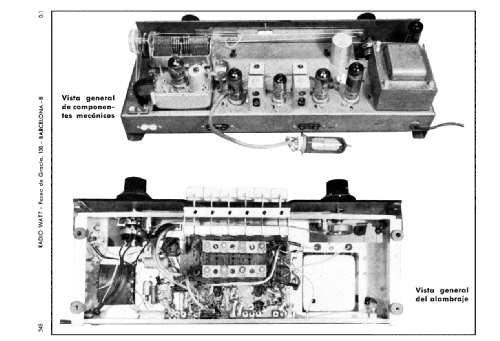

Imagen del manual Valgifson - Radio Watt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super 7/651-An Valgifson - Radio Watt Valgifson;
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 500 x 315 x 210 mm / 19.7 x 12.4 x 8.3 inch
- Notes
-
Falta una página del manual (align1) donde vendría el esquema del sintonizador de FM con la ECC85.
- Price in first year of sale
- 3,938.20 ESP
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
