10931 with SW
Radolek Co., Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radolek Co., Chicago
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 52836
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 10931 [with SW] - Radolek Co., Chicago
- Notes

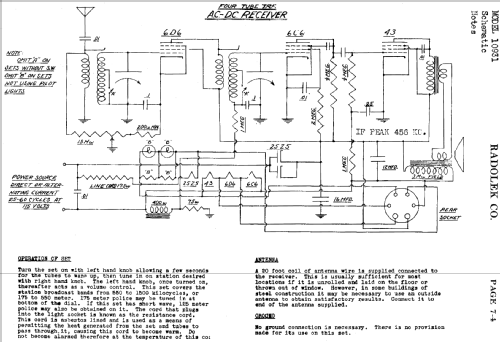

- The Riders schematic says "IF PEAK 456 KC". This is an error since the set is a TRF. See also model 931, similarity not yet veryfied.
- Source of data
- Machine Age to Jet Age II
- Literature/Schematics (1)
- Rider's Perpetual, Volume 7 (7-4, not a superhet !)
- Author
- Model page created by Peter Rutishauser. See "Data change" for further contributors.
