• Country
• Germany

• Manufacturer / Brand
• Rafena Werke Radeberg, VEB; Radeberg (Ostd.)

• Year
• 1962

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 81096

• • Brand: VEB Rafena; Radeberg (Ostd.)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECL82

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Audio-Amplification

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

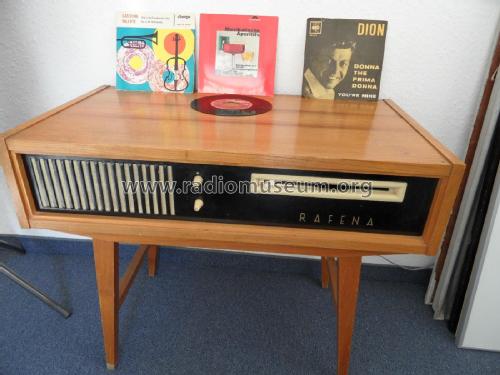

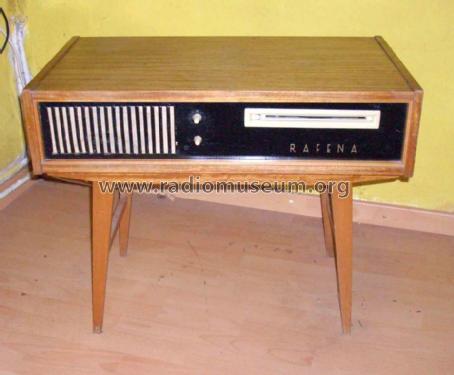

• Model: Fernseh-Phono-Tisch 1192.001 - Rafena Werke Radeberg, VEB;

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 703 x 558 x 400 mm / 27.7 x 22 x 15.7 inch

• Notes

• Enthält Plattenspielautomat Ziphona A30 für M45-Platten mit 1-W-Verstärker.

  Leistungsaufnahme: ca. 60 VA. Netzsteckdose für Rundfunk- oder Fernsehgerät auf der Rückseite.

• Net weight (2.2 lb = 1 kg)
• 14.5 kg / 31 lb 15 oz (31.938 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
