• Country
• Italy

• Manufacturer / Brand
• Raytron, Rajmar; Milano

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 179408

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA79

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.1 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

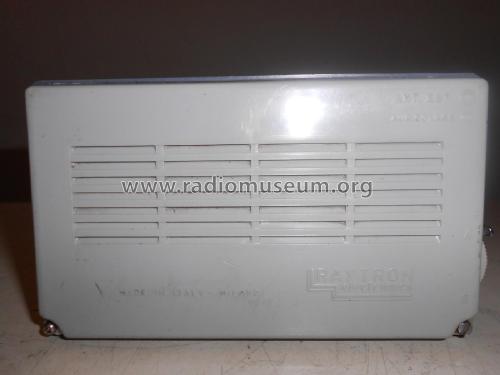

• Model: Darling Deluxe - Raytron, Rajmar; Milano

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 135 x 35 x 80 mm / 5.3 x 1.4 x 3.1 inch

• Notes

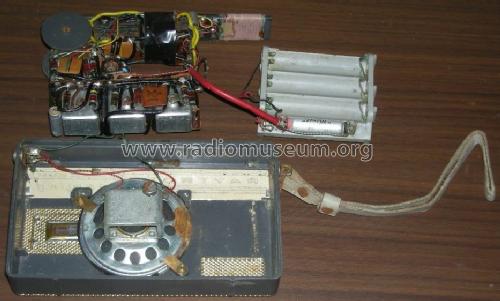

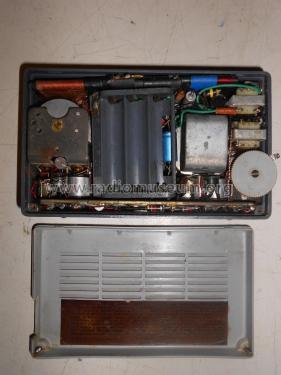

• Aufwändige Handverdrahtung; separater Einschalthebel am Lautstärkeregler. Indirekter Skalenantrieb (Untersetzung).

  Elaborazione del cablaggio manuale. Comando di accensione a leva, separato dal controllo del volume. Demoltiplica sul comando di sintonia.

• Net weight (2.2 lb = 1 kg)
• 0.350 kg / 0 lb 12.3 oz (0.771 lb)

• Mentioned in
• Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.110, novembre-dicembre 2012, pag. 6)

• Literature/Schematics (1)
• -- Schematic (Schemario di Apparecchi a Transistori Vol. 3° R. Rosati)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
