648PV Ch= KCS24A-1, KRS20-1, KRS21A-1, KRK-1A, RK121-A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1947–1949
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 249005
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 49
- Valves / Tubes
- 6J6 6J6 6J6 6AG5 6AG5 6AG5 6AG5 6AL5 6AU6 6V6GT 6AL5 6AT6 6BA6 6BA6 6AU6 6AL5 6AT6 6J5 6F6G 6F6G 6SK7 6SH7 6J5 6J5 6K6GT 6H6 6AC7 6K6GT 6J5 6BG6G 6BG6G 6AS7G 5V4G 1B3GT 1B3GT 1B3GT 5U4G 5U4G 5U4G 5U4G 5TP4 6BA6 6BA6 6BE6 6BA6 6AU6 6AU6 6AL5 6AT6
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110 to 120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 10 W (11 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 648PV Ch= KCS24A-1, KRS20-1, KRS21A-1, KRK-1A, RK121-A - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 48 x 39.25 x 25.5 inch / 1219 x 997 x 648 mm
- Notes
-

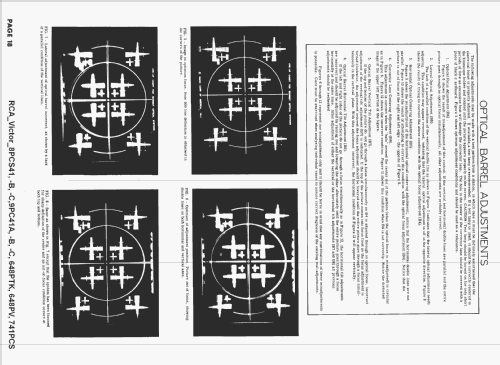

The RCA 648PV is an AC operated, 49 tube combination phonograph, AM/FM/SW radio and b/w Projection TV console with US standard VHF Tuner channels 2 thru 13. A reflective optical system provides a 15" x 20" picture on the screen. Equipped with TV RF/IF chassis KCS24A-1, horizontal deflection chassis KRS20-1, TV power supply chassis KRS21A-1, audio amplifier chassis RS123B, optical barrel chassis KRK-1A. radio chassis RK121-A and picture tube 5TP4. The optical barrel chassis KRK-1A is used only for the optics and contains no tubes. The cabinet was available in Walnut or Mahogany.
The Radio has the following frequency ranges:
AM: 540-1600kc
SW: 9.2-16.0Mc
FM: 88-108Mc
- Net weight (2.2 lb = 1 kg)
- 323 lb (323 lb 0 oz) / 146.642 kg
- Mentioned in
- Photofact Folder, Howard W. SAMS (Vol. 9/50 Date 3-50 90-9 Set 90 Folder 9)
- Literature/Schematics (1)
- RCA Victor Service Notes "Red Book" Series (Volume IV, 1947/1948 Pages 295 to 364)
