6-T-84 "Fairfax" Ch= KCS48T & RC1090

RCA (RCA Victor Co. Inc.); New York (NY)

Dati
Forum
Immagini
Collezioni

  • Anno
  • 1949/1950
perfect model
  • Categoria
  • Ricevitore TV e radio (ev. con magnetofono, giradischi, registratore a cassette ecc.)
  • Radiomuseum.org ID
  • 231284
    • alternative name: RCA Manufacturing || Victor Talking Machine

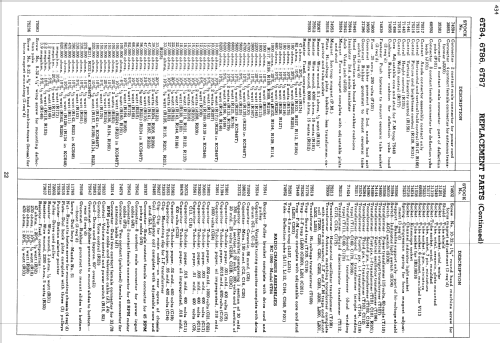

Clicca sulla miniatura dello schema per richiederlo come documento gratuito.

 Specifiche tecniche

  • Numero di tubi
  • 28
  • Principio generale
  • Supereterodina con stadio RF
  • Gamme d'onda
  • Gamme d'onda nelle note.
  • Particolarità
  • Cambiadischi
  • Tensioni di funzionamento
  • Alimentazione a corrente alternata (CA) / 60 cycles, 115 Volt
  • Altoparlante
  • AP magnetodinamico (magnete permanente e bobina mobile) / Ø 12 inch = 30.5 cm
  • Potenza d'uscita
  • 6 W (max.)
  • Materiali
  • Mobile in legno
  • Radiomuseum.org
  • Modello: 6-T-84 "Fairfax" Ch= KCS48T & RC1090 - RCA RCA Victor Co. Inc.; New
  • Forma
  • Console di qualsiasi tipo
  • Dimensioni (LxAxP)
  • 39 x 37.625 x 21.75 inch / 991 x 956 x 552 mm
  • Annotazioni

  • The RCA 6T84 is an AC operated 28 tube combination BC band radio, phonograph and 16" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with picture tube 16GP4, 16GP4A, 16GP4B or 16GP4C.  Cabinet color is Walnut, Mahogany or Oak. Has both a 45 RPM record changer and a 33 1/3, 78 RPM record changer.  The 45 RPM record changer used is model RP-168, which holds up to ten 7 inch fine groove records or model RP-190, which holds up to twelve 7 inch fine groove records.  The 33 1/3, 78 RPM record changer used in this model is 960285 or 960284, which hold up to ten 12 inch or twelve 10 inch records.

    The BC band frequency range is 540 to 1600kHz.

    This model uses TV chassis KCS48T, which has 21 tubes (including the picture tube).  The 6T84 was also available using TV chassis KCS48, which has 20 tubes (including the picture tube).  The radio chassis (RC1090) has 7 tubes and has a push-pull output stage.

    The TV alignment data and waveform photographs can be found in RCA model 6T53 data (Pages 372 to 385 in RCA Victor Service Data Volume VI 1950).  The Radio chassis RC1090 used in this model is similar to the radio chassis used in model 2T81 (refer to pages 356 and 357 in RCA Victor Service Data Volume VI 1950).

    Model Chassis Matrix
    Model TV Chassis Radio Chassis
    6T84 KCS48 RC1090 (AM)
    6T84 KCS48T RC1090 (AM)
    6T86 KCS48 RC1092 (AM & FM)
    6T86 KCS48T RC1092 (AM & FM)
    6T87 KCS48 RC1092 (AM & FM)
    6T87 KCS48T RC1092 (AM & FM)



  • Peso netto
  • 162 lb (162 lb 0 oz) / 73.548 kg
  • Fonte dei dati
  • - - Manufacturers Literature
  • Autore
  • Modello inviato da John Kusching. Utilizzare "Proponi modifica" per inviare ulteriori dati.
