7T1

7T1 ; RCA RCA Victor Co. (ID = 936857) Radio

7T1 ; RCA RCA Victor Co. (ID = 908200) Radio

7T1 ; RCA RCA Victor Co. (ID = 908205) Radio

7T1 ; RCA RCA Victor Co. (ID = 908201) Radio

7T1 ; RCA RCA Victor Co. (ID = 908202) Radio

7T1 ; RCA RCA Victor Co. (ID = 908204) Radio

7T1 ; RCA RCA Victor Co. (ID = 908203) Radio
7T1 ; RCA RCA Victor Co. (ID = 1326239) Radio 7T1 ; RCA RCA Victor Co. (ID = 1326240) Radio
7T1 ; RCA RCA Victor Co. (ID = 1326241) Radio 7T1 ; RCA RCA Victor Co. (ID = 1326242) Radio
7T1 ; RCA RCA Victor Co. (ID = 1326243) Radio 7T1 ; RCA RCA Victor Co. (ID = 1326244) Radio
7T1 ; RCA RCA Victor Co. (ID = 1326245) Radio 7T1 ; RCA RCA Victor Co. (ID = 1326246) Radio
7T1 ; RCA RCA Victor Co. (ID = 1326247) Radio 7T1 ; RCA RCA Victor Co. (ID = 1326248) Radio
Use red slider bar for more.
7T1 ; RCA RCA Victor Co. (ID = 1326239) Radio
RCA RCA Victor Co.: 7T1 [Radio] ID = 1326239 933x1390
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7T1, RCA (RCA Victor Co. Inc.); New York (NY):
Very front view.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6A8 6K7 6H6 6F5 6G5 6F6 5W4
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: 7T1 - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 15.5 x 22.75 x 8.5 inch / 394 x 578 x 216 mm
Notes same chassis as in console 7K1.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

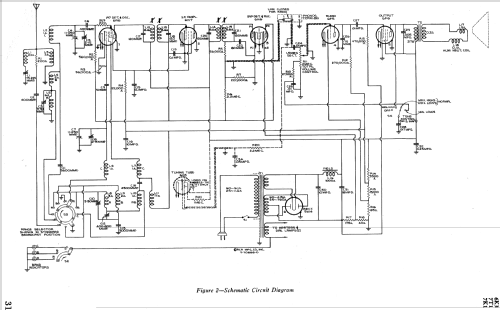

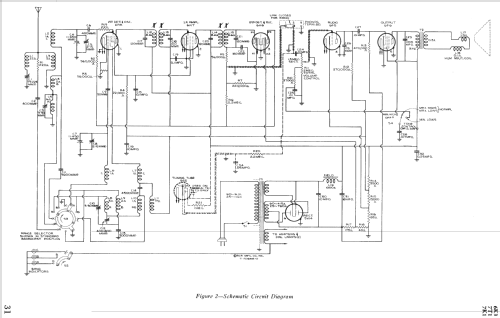

Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Machine Age to Jet Age II
Literature/Schematics (2) RCA Victor Service Notes for 1937 (RCA Red Book 1937)
Literature/Schematics (3) Table Top Radios Vol. 1 Stein 98 (page 131.)
Literature/Schematics (4) Cathedral & Tombstone Radios (page 213.)
