8PCS41 Ch= KCS24B-1, KRS20A-1, KRS21A-1, RS123C, KRK1A-1

RCA (RCA Victor Co. Inc.); New York (NY)

  • Año
  • 1948/1949
  • Categoría
  • Televisión (TV) o monitor
  • Radiomuseum.org ID
  • 120523
    • alternative name: RCA Manufacturing || Victor Talking Machine

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

 Especificaciones técnicas

  • Numero de valvulas
  • 41
  • Principio principal
  • Superheterodino con paso previo de RF
  • Gama de ondas
  • VHF/UHF (see notes for details)
  • Tensión de funcionamiento
  • Red: Corriente alterna (CA, Inglés = AC) / 60 cycles, 110 to 120 Volt
  • Altavoz
  • Altavoz electrodinámico (bobina de campo) / Ø 12 inch = 30.5 cm
  • Potencia de salida
  • 10 W (11 W max.)
  • Material
  • Madera
  • de Radiomuseum.org
  • Modelo: 8PCS41 Ch= KCS24B-1, KRS20A-1, KRS21A-1, RS123C, KRK1A-1 - RCA RCA Victor Co. Inc.; New
  • Forma
  • Consola baja, patas más cortas del 50%.
  • Ancho, altura, profundidad
  • 36.25 x 39.125 x 24.25 inch / 921 x 994 x 616 mm
  • Anotaciones
  • The RCA 8PCS41 is an AC operated, 41 tube b/w Projection TV console with US standard VHF Tuner channels 2 thru 13. A reflective optical system provides a 15" x 20" picture on the screen. Equipped with RF/IF chassis KCS24B-1, horizontal deflection chassis KRS20A-1, power supply chassis KRS21A-1, audio amplifier chassis RS123C, optical barrel chassis KRK1A-1 and picture tube 5TP4.  The optical barrel chassis KRK1A-1 is used only for the optics and contains no tubes.  The cabinet was available in Walnut, Mahogany or Toasted Mahogany.

    There are three versions of model 8PCS41.  The RCA Redbook documentation lists them as 8PCS41, 8PCS41-B and 8PCS41-C.  The model differences may be identified per the table below:

    Model Number RF/IF Chassis Horizontal Deflection Chassis Optical Barrel Chassis
    8PCS41 KCS24B-1 KCS20A-1 KRK1A-1
    8PCS41-B KCS24C-1 KCS20B-1 KRK4
    8PCS41-C KCS24C-1 KCS20A-1 KRK1A-1

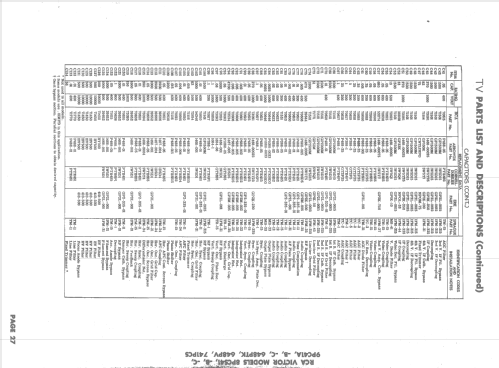

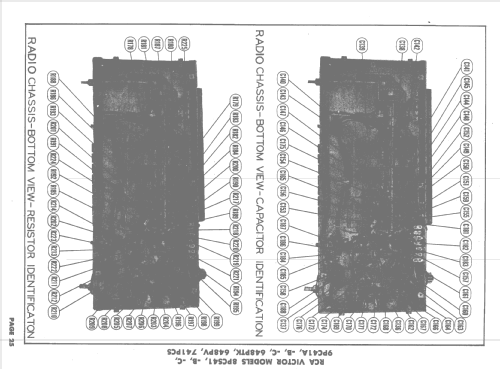

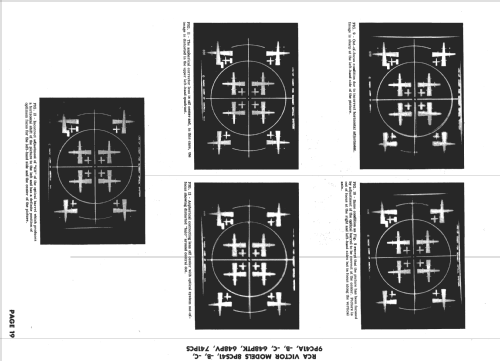

    The RCA Redbook documentation states that the alignment information and other service data for these models is found in the service data for model 648PTK.

  • Peso neto
  • 247 lb (247 lb 0 oz) / 112.138 kg
  • Autor
  • Modelo creado por un miembro de A. Ver en "Modificar Ficha" los participantes posteriores.
