9PC41a Ch= KCS24C-1, KRS20B-1, KRS21A-1, RS123C, KRK4

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1949/1950

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 249012

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture
• Schematics

Previous Next

Previous Next

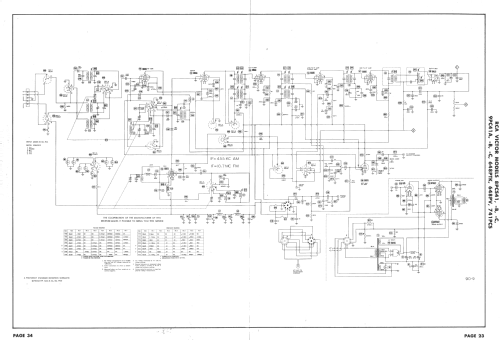

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 41

• Valves / Tubes
• 6J6 6J6 6J6 6AG5 6AG5 6AG5 6AG5 6AL5 6AU6 6V6GT 6AL5 6AT6 6BA6 6BA6 6AU6 6AL5 6AT6 6J5 6F6G 6F6G 6SK7 6SH7 6J5 6J5 6K6GT 6H6 6AC7 6K6GT 6J5 6BG6G 6BG6G 6AS7G 5V4G 1B3GT 1B3GT 1B3GT 5U4G 5U4G 5U4G 5U4G 5TP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110 to 120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 10 W (11 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 9PC41a Ch= KCS24C-1, KRS20B-1, KRS21A-1, RS123C, KRK4 - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 36.25 x 39.125 x 24.25 inch / 921 x 994 x 616 mm

• Notes

• The RCA 9PC41a is an AC operated, 41 tube b/w Projection TV console with US standard VHF Tuner channels 2 thru 13. A reflective optical system provides a 15" x 20" picture on the screen. Equipped with RF/IF chassis KCS24C-1, horizontal deflection chassis KRS20B-1, power supply chassis KRS21A-1, audio amplifier chassis RS123C, optical barrel chassis KRK4 and picture tube 5TP4.  The optical barrel chassis KRK4 is used only for the optics and contains no tubes.

  There are three versions of model 9PC41.  The RCA Redbook documentation lists them as 9PC41a, 9PC41b and 9PC41c, but also notes that the actual lables on the models are not labeled as such.  Thus the actual model must be identified per the table below:

  Model Number	RF/IF Chassis	Lighted Channel Marker	Cabinet
  9PC41a	KCS24C-1	No	Walnut, Mahogany, Toasted Mahogany
  9PC41b	KCS24D	Yes	Walnut, Mahogany
  9PC41c	KCS24D	Yes	Toasted Mahogany

  Also note that the 9PC41c has a different interlock switch and hinge lid support compared to the 9PC41b.

  The RCA Redbook documentation states that the alignment information for these models is found in the service data for model 648PTK.
