Emissora Nacional Portugal
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 79571
-
- alternative name: RCA Manufacturing || Victor Talking Machine
My own collection
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); Neutrodyne
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Emissora Nacional Portugal - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 260 x 180 x 150 mm / 10.2 x 7.1 x 5.9 inch
- Notes
- Export Model for Portugal.
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Jose Duarte Costa. See "Data change" for further contributors.
- Other Models
-
Here you find 5118 models, 3224 with images and 4151 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
Collections
The model Emissora Nacional Portugal is part of the collections of the following members.
Forum contributions about this model: RCA RCA Victor Co.: Emissora Nacional Portugal
Threads: 2 | Posts: 10
Dear Collectors

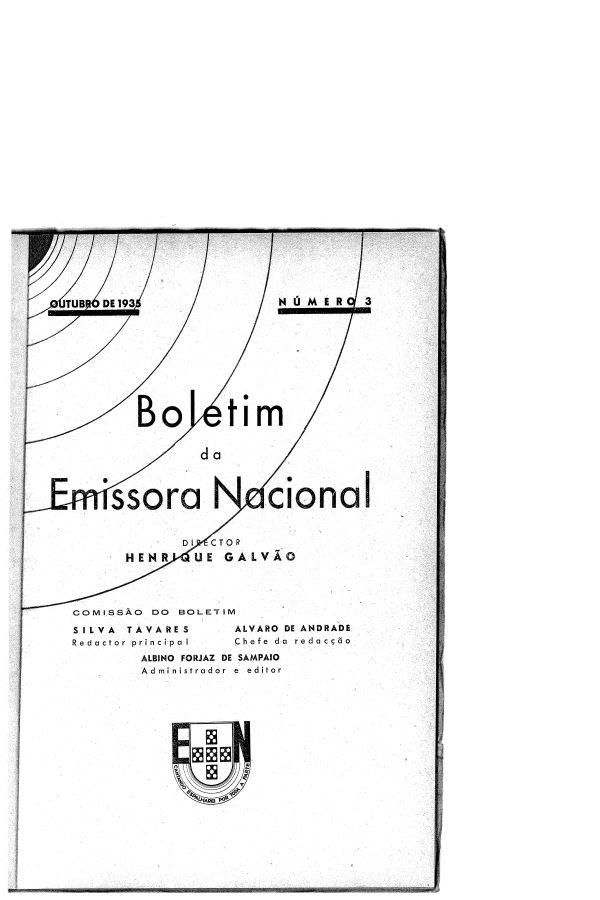

This document reveals that this radio set is the Portuguese "radio of the people".
Attachments
- Boletim Nº 3 EN1 (140 KB)
- Boletim Nº 3 EN2 (56 KB)
Jose Duarte Costa, 16.Jul.08
Caros colecionadores
Esta publicação revela que este radio é o« radio do povo»português.
Comprimentos
José Duarte
Attachments
- Boletim Nº 3 EN1 (140 KB)
- Boletim Nº 3 EN2 (56 KB)
Jose Duarte Costa, 08.Jul.08
