• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54537

• • alternative name: RCA Manufacturing || Victor Talking Machine

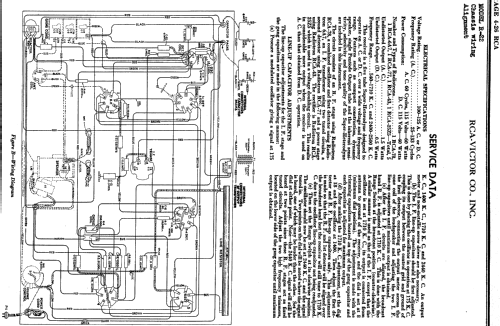

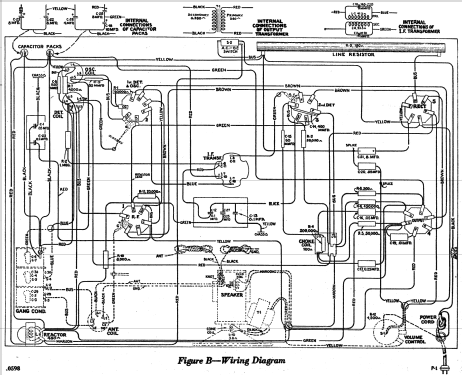

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 78 6A7 77 43 25Z5

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.

• Power type and voltage
• AC/DC-set / 100-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: R-22-W [with handle, repwood] - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

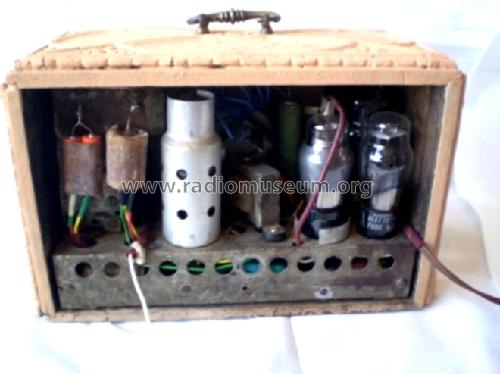

• Notes

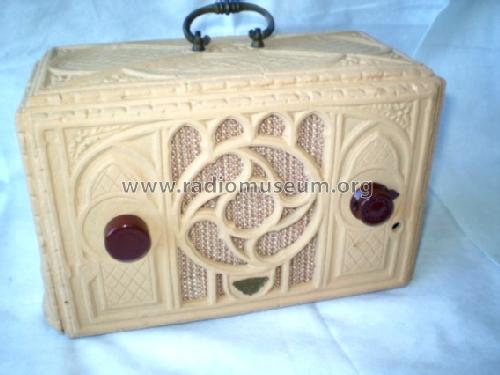

• Ornate repwood (pressed wood) case. metal handle.

  Receives regular broadcasts and police calls.

  Without input transformer. Both in AC and DC operation the circuit is connected to the mains.
  We do not always state such cases - since often the uploader does not know.

• Price in first year of sale
• 24.75 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition)

• Literature/Schematics (1)
• Machine Age to Jet Age II

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series

• Literature/Schematics (3)
• Radex, Radio-Index, Sept. 1933

• Literature/Schematics (4)
• Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)
