• Country
• Canada

• Manufacturer / Brand
• RCA Victor (International), Montreal

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 304211

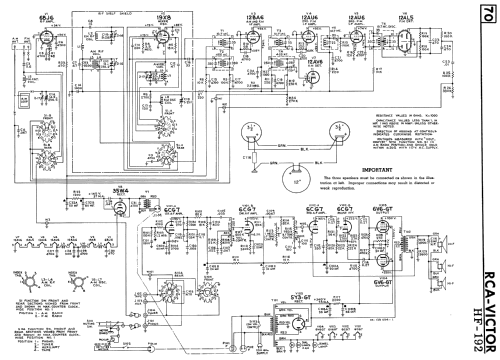

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6BJ6 19X8 12BA6 12AU6 12AU6 12AL5 12AV6 35W4 6CG7 6CG7 6V6GT 6V6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 5 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 115 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 10 W (15 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: HF-192 Mark III Ch= RC-1155 + RS-151A - RCA Victor International,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 35 x 34.5 x 16.5 inch / 889 x 876 x 419 mm

• Notes

• The RCA-Victor model HF-192 Mark III is a radio-phonograph combination console consisting of an RC-1155 AM/FM tuner chassis and an RS-151A audio amplifier chassis and a 4-speed record changer with ceramic pickup. Has a 12 inch woofer and two 3.5 inch tweeters. Cabinet is available in mahogany. maple or blond oak finish.

• Net weight (2.2 lb = 1 kg)
• 93 lb (93 lb 0 oz) / 42.222 kg

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1957 Supplement 40)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
