• Year
  • 1935/1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 151166

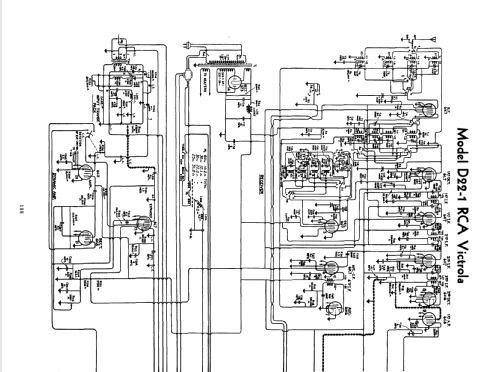

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 22
  • Main principle
  • Superhet with RF-stage; ZF/IF 460 kHz
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Details
  • Recording phonogr.-Disc Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 30 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Victrola D22-1 - RCA Victor International,
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 38 x 43 x 20 inch / 965 x 1092 x 508 mm
  • Notes
  • Disc Recorder and Player.
    Receiver frequency bands (5): Band X 140-410 Kc, Band A 540-1,800 Kc, Band B 1800-6000 Kc, Band C 6000-18,000 Kc, Band D 18,000-60,000 Kc.
  • Net weight (2.2 lb = 1 kg)
  • 122.3 kg / 269 lb 6.1 oz (269.383 lb)
  • Source of data
  • -- Original-techn. papers.
  • Mentioned in
  • RCA Volume1 page 188
  • Author
  • Model page created by Ashis Mukerjea. See "Data change" for further contributors.
