- Country
- Great Britain (UK)
- Manufacturer / Brand
- Regentone (Brand) various manufacturers.
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 175425

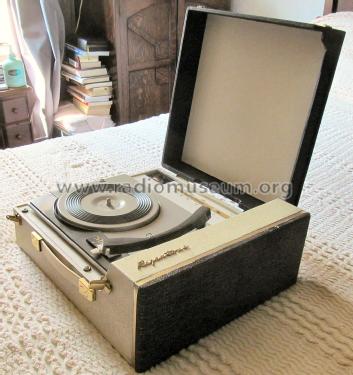

Image kindly sent in by Steven Sykes
Image kindly sent in by Steven Sykes
Image kindly sent in by Steven Sykes
Image kindly sent in by Steven Sykes
Image kindly sent in by Steven Sykes
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 475 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Dry Batteries / 9 & 2 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: BRG19 - Regentone Brand various
- Notes
-

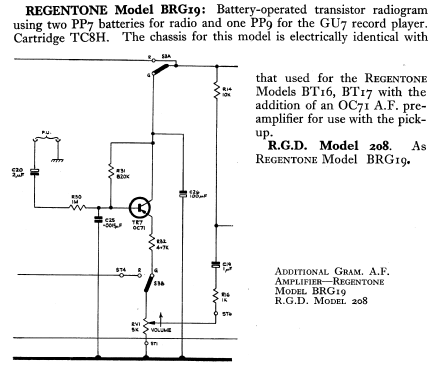

Battery radiogram, two PP7 batteries for radio & one PP9 for the GU7 record player. TC8H cartridge. The chassis is electricaly identical with Regentone models BT16 & BT17 with the addition of an OC71 pre-amp for the pick-up.
Same chassis as RGD model BRG19
- Source of data
- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
- Other Models
-
Here you find 156 models, 92 with images and 101 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Regentone (Brand) various manufacturers.
