- Country
- Great Britain (UK)
- Manufacturer / Brand
- Regentone Products / Radio Television; Romford, Isleworth, London
- Year
- 1952/1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104318

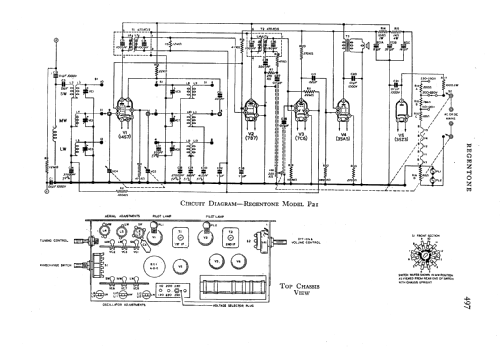

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 100-120; 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: P21 - Regentone Products / Radio
- Shape
- Tablemodel, low profile (big size).
- Notes
- Same chassis as in model U121 / U141.
- External source of data
- Malcolm Bennett
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1062)
- Author
- Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
