Atlantis-Australien G

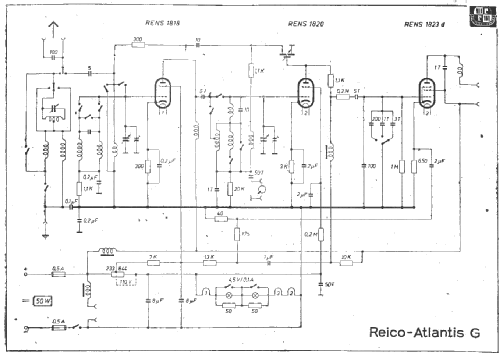

Atlantis-Australien G; Reico Radio, Max (ID = 1953288) Radio
Atlantis-Australien G; Reico Radio, Max (ID = 1532507) Radio Atlantis-Australien G; Reico Radio, Max (ID = 1533996) Radio
Use red slider bar for more.
Atlantis-Australien G; Reico Radio, Max (ID = 1532507) Radio

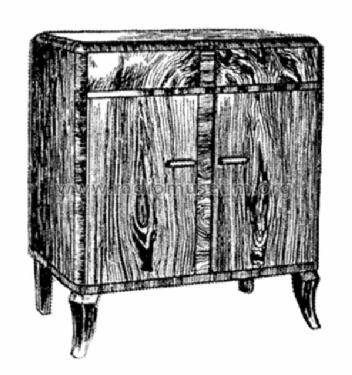

Reico Radio, Max: Atlantis-Australien G [Radio] ID = 1532507 600x638
Select picture or schematic to display from thumbnails on the right and click for download.
For model Atlantis-Australien G, Reico Radio, Max Reinhardt & Co.; Berlin:
Original-Prospekt

Country:  Germany
Manufacturer / Brand:  Reico Radio, Max Reinhardt & Co.; Berlin
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RENS1818 RENS1820 RENS1823d
Main principle TRF without regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage Direct Current supply (DC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Atlantis-Australien G - Reico Radio, Max Reinhardt &
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 715 x 800 x 450 mm / 28.1 x 31.5 x 17.7 inch
Notes

Luxus-Truhe mit elektrischem Plattenlaufwerk mit automatischem Absteller. Plattenablage. Atlantis-Chassis, mit 3 Wellenbereichen: KW 19 - 55 m, MW 200 - 600 m, LW 600 - 2000m.

Die H4111D muss mit dem Index T oder BT (auch auf der Verpackung)  gestempelt sein.

Gehäuse in Kaukasisch-Nussbaum-Makassar.

Net weight (2.2 lb = 1 kg) 39 kg / 85 lb 14.4 oz (85.903 lb)
Price in first year of sale 475.00 RM +
Source of data Radiokatalog Band 1, Ernst Erb
Mentioned in Funkgeschichte der GFGF (9497)
Literature/Schematics (1) -- Original prospect or advert
