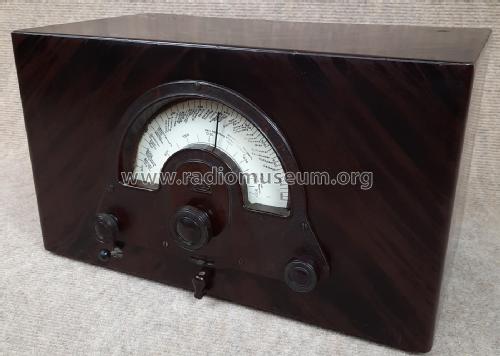

Reico Radio, Max: Europa Spezial W Ch= Standard W [Radio] ID = 722396 933x633

Select picture or schematic to display from thumbnails on the right and click for download.

For model Europa Spezial W Ch= Standard W Halbkreis-Skala, Reico Radio, Max Reinhardt & Co.; Berlin:
Standard W Chassis im Spezial W Gehäuse!!

Country:

Germany

Manufacturer / Brand:

Reico Radio, Max Reinhardt & Co.; Berlin

Year: 1932/1933

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

4: RENS1204 RENS1204 RES164 RGN504

Main principle	TRF with regeneration; 1 AF stage(s); Anode bend detection
Tuned circuits	2 AM circuit(s)
Wave bands	Broadcast (MW) and Long Wave.
Details
Power type and voltage	Alternating Current supply (AC) / 110-220 Volt
Loudspeaker	- This model requires external speaker(s).
Power out
from Radiomuseum.org	Model: Europa Spezial W Ch= Standard W [Halbkreis-Skala] - Reico Radio, Max Reinhardt &
Material	Metal case
Shape	Tablemodel, low profile (big size).
Dimensions (WHD)	348 x 204 x 195 mm / 13.7 x 8 x 7.7 inch
Notes	Offenbar wurden für die preiswertere "Spezial"-Version im Blechgehäuse einfach die "Standard"-Chassis verwendet. In Blech verbilligte sich ein solches Gerät immerhin um 17.-RM, also um fast 15%!
Price in first year of sale	98.00 RM +
Source of data	Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference	Röhren in FS-Bestückungstabellen
Picture reference	Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
