Fernempfänger RF234 (RF 234 B)

Fernempfänger RF234 ; Reico Radio, Max (ID = 1130620) Radio Fernempfänger RF234 ; Reico Radio, Max (ID = 1107560) Radio
Fernempfänger RF234 ; Reico Radio, Max (ID = 1107561) Radio Fernempfänger RF234 ; Reico Radio, Max (ID = 1107563) Radio
Fernempfänger RF234 ; Reico Radio, Max (ID = 1107564) Radio Fernempfänger RF234 ; Reico Radio, Max (ID = 1107565) Radio
Fernempfänger RF234 ; Reico Radio, Max (ID = 1107566) Radio Fernempfänger RF234 ; Reico Radio, Max (ID = 1130621) Radio
Use red slider bar for more.
Fernempfänger RF234 ; Reico Radio, Max (ID = 1130620) Radio
Reico Radio, Max: Fernempfänger RF234 [Radio] ID = 1130620 933x506
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fernempfänger RF234 (RF 234 B), Reico Radio, Max Reinhardt & Co.; Berlin:

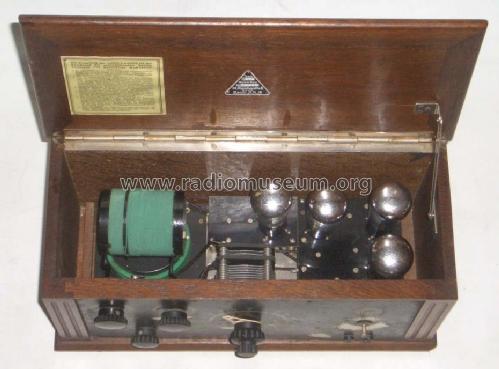

Neues Frontbild nach Beseitigung der Lackfehlstellen.

Country:  Germany
Manufacturer / Brand:  Reico Radio, Max Reinhardt & Co.; Berlin
Year: 1927–1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RE064 RE054 RE064 RE124
schematic requested
Main principle TRF with regeneration; 1 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Fernempfänger RF234 - Reico Radio, Max Reinhardt &
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 402 x 200 x 175 mm / 15.8 x 7.9 x 6.9 inch
Notes Kapazitive Rückkopplung.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 149.00 RM +
Source of data Katalog Prohaska 1928/29 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in Radio Schnorr 1929


All listed radios etc. from Reico Radio, Max Reinhardt & Co.; Berlin
Here you find 142 models, 83 with images and 36 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
