Kompaktbox B9226

Kompaktbox B9226; REMA, Fabrik für (ID = 949418) Speaker-P Kompaktbox B9226; REMA, Fabrik für (ID = 945237) Speaker-P
Kompaktbox B9226; REMA, Fabrik für (ID = 945219) Speaker-P Kompaktbox B9226; REMA, Fabrik für (ID = 945220) Speaker-P
Use red slider bar for more.

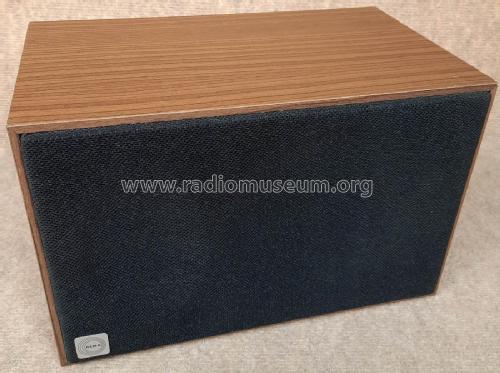

Kompaktbox B9226; REMA, Fabrik für (ID = 949418) Speaker-P
REMA, Fabrik für: Kompaktbox B9226 [Speaker-P] ID = 949418 699x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kompaktbox B9226, REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)

Country:  Germany
Manufacturer / Brand:  REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)
Year: 1984 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 15 W (unknown quality)
from Radiomuseum.org Model: Kompaktbox B9226 - REMA, Fabrik für Rundfunk,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 230 x 360 x 220 mm / 9.1 x 14.2 x 8.7 inch
Notes

2-Wege-Kompaktbox für Rema Marcato RX41, 15 W, 4 Ω. Volumen 10 Liter. Bestückung: Tiefton-Lautsprecherchassis L2901 (15 W, 4 Ω) und Mittel-Hochton-Lautsprecherchassis L5964 (8 W, 8 Ω).

Source of data - - Data from my own collection

Model page created by Jörg Kulbe. See "Data change" for further contributors.
