Marcato RX41; REMA, Fabrik für (ID = 312593) Radio
REMA, Fabrik für: Marcato RX41 [Radio] ID = 312593 933x462

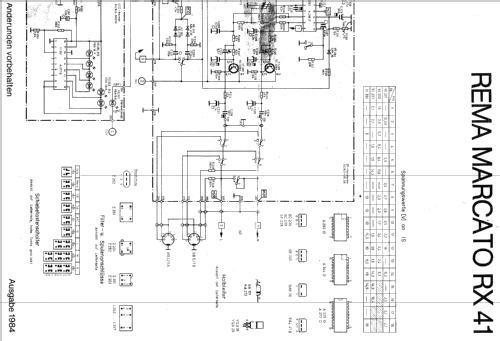

Select picture or schematic to display from thumbnails on the right and click for download.
For model Marcato RX41, REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)

Country:  Germany
Manufacturer / Brand:  REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)
Year: 1984 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 30:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Marcato RX41 - REMA, Fabrik für Rundfunk,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 456 x 148 x 292 mm / 18 x 5.8 x 11.5 inch
Notes

ICs: 4; LEDs: 7
NF-Ausgangsleistung: 2× 15 W; Auslieferung erfolgte mit 2 Stück 2-Wege-Lautsprecherboxen B9226, je 10 Liter, 15 W).

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 1'350.00 DM
Source of data -- Schematic / Radiokatalog Band 2, Ernst Erb
Mentioned in Service- DVD Funkverlag B. Hein.

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)
Here you find 160 models, 133 with images and 120 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
