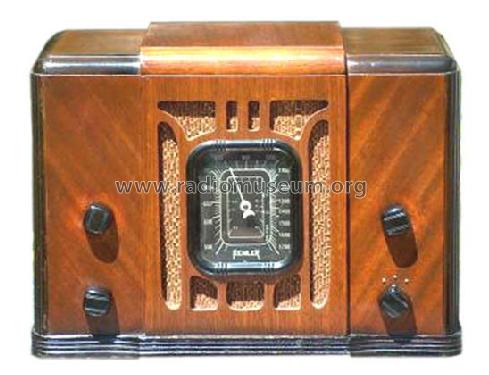

63 ; Remler Co. Ltd.; San (ID = 666057) Radio
Remler Co. Ltd.; San: 63 [Radio] ID = 666057 548x420
Select picture or schematic to display from thumbnails on the right and click for download.
For model 63, Remler Co. Ltd.; San Francisco:
Quelle Bechstein.

Country:  United States of America (USA)
Manufacturer / Brand:  Remler Co. Ltd.; San Francisco
alternative name

Gray & Danielson || Remler Radio Manuf.
Year: 1935 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A8 6K7 6H6 6F5 6F6 5Z4
Main principle Superheterodyne (common); ZF/IF 450 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 63 - Remler Co. Ltd.; San Francisco
External source of data Ernst Erb

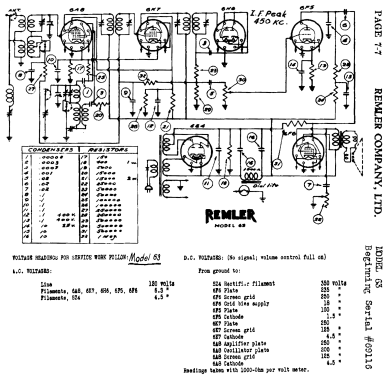

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
