Norco 140
Remler Co. Ltd.; San Francisco
- Country
- United States of America (USA)
- Manufacturer / Brand
- Remler Co. Ltd.; San Francisco
- Year
- 1937 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 214965
-
- alternative name: Gray & Danielson || Remler Radio Manuf.

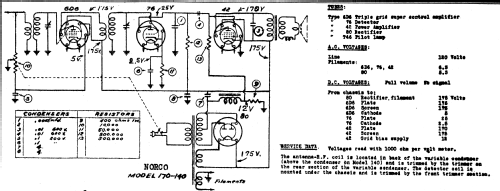

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- from Radiomuseum.org
- Model: Norco 140 - Remler Co. Ltd.; San Francisco
- Notes
- The antenna is located above the condenser.
- Mentioned in
- Rider's Perpetual, Volume 8 = 1937 and before (misc.8-8)
- Author
- Model page created by Harry Ducker. See "Data change" for further contributors.
