For model Melodiâ - Мелодия 14 Stereo, Resprom; Veliko Tarnovo:

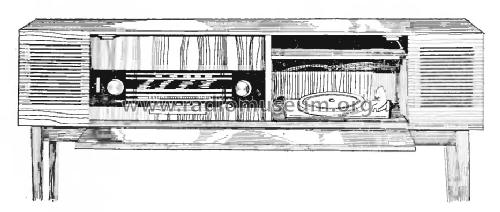

Picture from book 'Bulgarian Radio Receivers'

Country:  Bulgaria
Manufacturer / Brand:  Resprom; Veliko Tarnovo
Year: 1968 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 ECL86 ECL86
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.

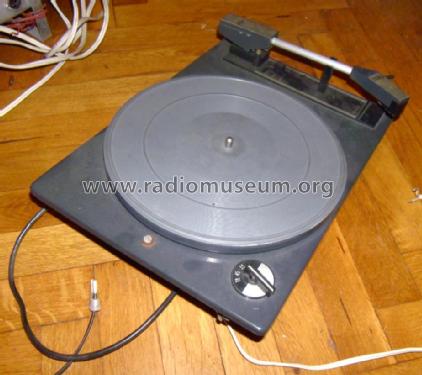

Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt

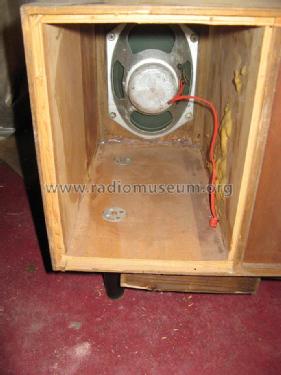

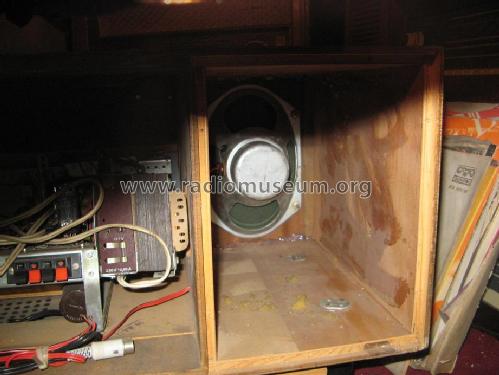

Loudspeaker 2 Loudspeakers
Power out 5 W (undistorted)
from Radiomuseum.org Model: Melodiâ - Мелодия 14 Stereo - Resprom; Veliko Tarnovo
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

Wave Bands:
MW: 520-1600 kHz
LW: 145-350 kHz
SW: 5,8-18 MHz
FM: 64,5-73 MHz (OIRT-Band)

Mentioned in book "Bulgarian Radio Receivers"

Model page created by Simeon Nikolov. See "Data change" for further contributors.
