Kosmos 436V

Kosmos 436V; RET Raadio- (ID = 289366) Radio Kosmos 436V; RET Raadio- (ID = 289367) Radio
Kosmos 436V; RET Raadio- (ID = 289368) Radio
Use red slider bar for more.
Kosmos 436V; RET Raadio- (ID = 289366) Radio

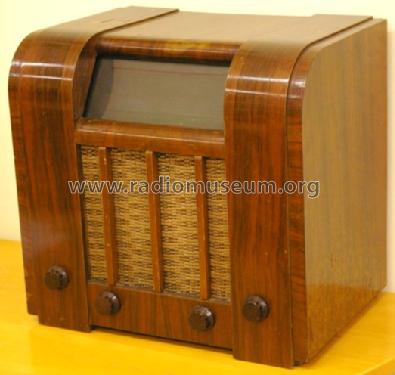

RET Raadio-: Kosmos 436V [Radio] ID = 289366 523x496
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kosmos 436V, RET Raadio-Elektrotehnika Tehas

Country:  Estonia (Eesti, Tallinn)
Manufacturer / Brand:  RET Raadio-Elektrotehnika Tehas
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL2 AZ1
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Kosmos 436V - RET Raadio-Elektrotehnika
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 410 x 390 x 280 mm / 16.1 x 15.4 x 11 inch
Notes Produced in Nov 1935 - in first year of activity RET plant.
Price in first year of sale 260.00 EEK
Source of data - - Manufacturers Literature
Mentioned in -- Collector info (Sammler)

Model page created by Urmas Tingas. See "Data change" for further contributors.



All listed radios etc. from RET Raadio-Elektrotehnika Tehas
Here you find 9 models, 9 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
