Rover R155

Rover R155; RGD, Radio (ID = 1791251) Radio

Rover R155; RGD, Radio (ID = 1791252) Radio

Rover R155; RGD, Radio (ID = 1791253) Radio

Rover R155; RGD, Radio (ID = 1791254) Radio
Rover R155; RGD, Radio (ID = 2057370) Radio Rover R155; RGD, Radio (ID = 2057371) Radio

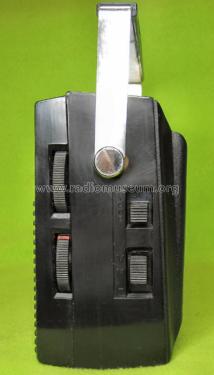

Rover R155; RGD, Radio (ID = 2057372) Radio Rover R155; RGD, Radio (ID = 2057373) Radio
Rover R155; RGD, Radio (ID = 2057374) Radio Rover R155; RGD, Radio (ID = 1791213) Radio
Use red slider bar for more.

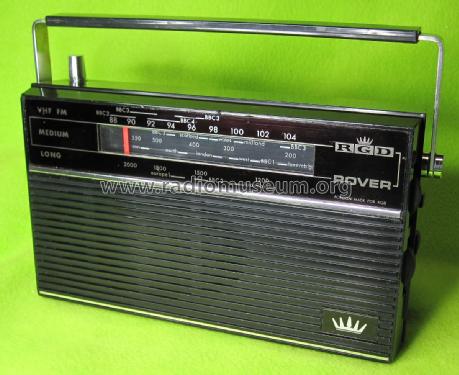

Rover R155; RGD, Radio (ID = 2057370) Radio
RGD, Radio: Rover R155 [Radio] ID = 2057370 1200x979
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rover R155, RGD, Radio Gramophone Development; Birmingham

Country:  Great Britain (UK)
Manufacturer / Brand:  RGD, Radio Gramophone Development; Birmingham
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SC535 2SC461 2SC460 2SC460 2SC460 2SB75 2SB75 2SB156 2SB156
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Rover R155 - RGD, Radio Gramophone
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

FM coverage 87.5 - 104 MHz

See also RGD R150

The RGD R150 & R155 are the same chassis as the KB KR607 "Jet Set"

Model page created by Mike Edwards. See "Data change" for further contributors.
