• Year
  • 1936 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 79753

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

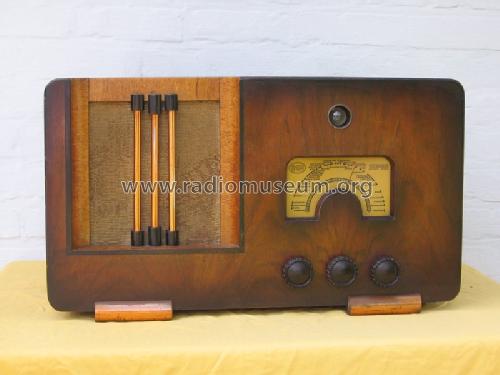

  • Model: Super - RGM R.G.M. Radio Geerts
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 570 x 330 x 270 mm / 22.4 x 13 x 10.6 inch
  • Notes
  • Dial with radial pointer
  • Net weight (2.2 lb = 1 kg)
  • 12.7 kg / 27 lb 15.6 oz (27.974 lb)
