Berlioz

Berlioz ; Ribet et Desjardins (ID = 414741) Radio Berlioz ; Ribet et Desjardins (ID = 414744) Radio
Berlioz ; Ribet et Desjardins (ID = 414742) Radio Berlioz ; Ribet et Desjardins (ID = 414743) Radio
Berlioz ; Ribet et Desjardins (ID = 414747) Radio Berlioz ; Ribet et Desjardins (ID = 414751) Radio
Use red slider bar for more.

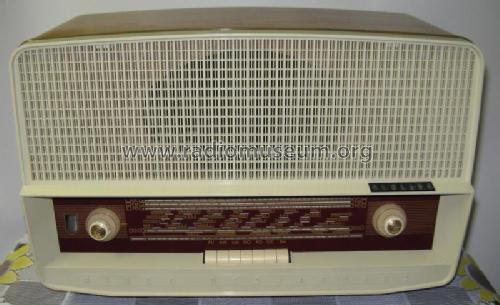

Berlioz ; Ribet et Desjardins (ID = 414741) Radio
Ribet et Desjardins: Berlioz [Radio] ID = 414741 800x602
Select picture or schematic to display from thumbnails on the right and click for download.
For model Berlioz, Ribet et Desjardins (R-D); Paris, Montrouge - voir aussi Unic

Country:  France
Manufacturer / Brand:  Ribet et Desjardins (R-D); Paris, Montrouge - voir aussi Unic
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM81 EL84 6BX4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Berlioz - Ribet et Desjardins R-D; Paris
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 335 x 235 mm / 19.7 x 13.2 x 9.3 inch
Notes

Clavier 7 touches dont 2 stations préréglées Europe et Luxembourg. Cadre à air orientable. HP elliptique de 16 x 24 cm. Accord FM inductif.

Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Mentioned in Radio et Télévision, Oct. 1960

Model page created by Franz-Josef Haffner. See "Data change" for further contributors.



All listed radios etc. from Ribet et Desjardins (R-D); Paris, Montrouge - voir aussi Unic
Here you find 103 models, 83 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
