Gigant
RIM bzw. Radio-RIM; München
- Country
- Germany
- Manufacturer / Brand
- RIM bzw. Radio-RIM; München
- Year
- 1959–1971
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 83188
-
- Brand: Radiola-Industrie GmbH
Flohmarkt 2013
Flohmarkt 2013
Flohmarkt 2013
Flohmarkt 2013

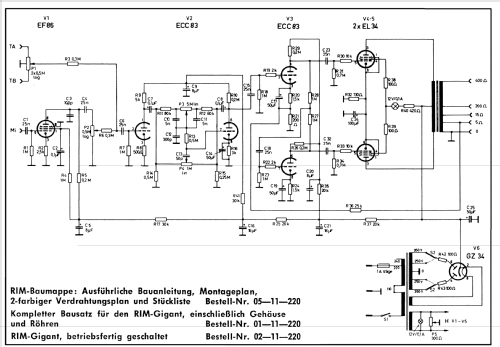

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 30 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Gigant - RIM bzw. Radio-RIM; München
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 380 x 212 x 290 mm / 15 x 8.3 x 11.4 inch
- Notes
- Mischpultverstärker-Bausatz; Sprechleistung 12 W und 30 W umschaltbar; 30-15000 Hz; betriebsfertig DM 345,-.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 245.00 DM
- External source of data
- Datenblatt
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by a member from A. See "Data change" for further contributors.
