• Country
• Germany

• Manufacturer / Brand
• RIM bzw. Radio-RIM; München

• Year
• 1954

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 122452

• • Brand: Radiola-Industrie GmbH

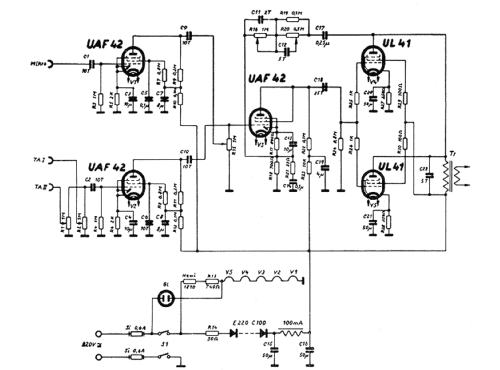

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UAF42 UAF42 UAF42 UL41 UL41

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Solist - RIM bzw. Radio-RIM; München

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 350 x 390 x 210 mm / 13.8 x 15.4 x 8.3 inch

• Notes
• Gitarrenverstärker für Allstrom

  Frequenzgang 40 - 14000 Hz

  3 Eingänge für:
  2 x Gitarre mit Tonabnehmer
  1 x Kristallmikrofon

  Endröhren parallel geschaltet

• Net weight (2.2 lb = 1 kg)
• 7.1 kg / 15 lb 10.2 oz (15.639 lb)

• Literature/Schematics (1)
• RIM-Bastelbuch 1954
