- Country
- Yugoslavia
- Manufacturer / Brand
- RIZ, Radio Industrija Zagreb; Zagreb
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 337192
-
- alternative name: Radioindustrija Zabreb

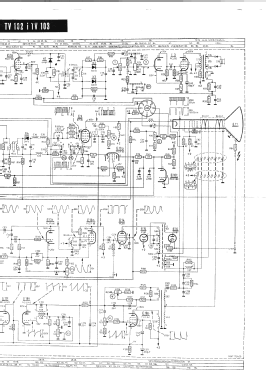

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- PCC88 PCF80 EF85 EF80 EF80 ECH83 PCF80 EF80 PCF80 PCL82 EF80 PCF80 PCF80 PL81 PY81 DY87 PCL82 PY82 PY82 AW43-80
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 38900/5500 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: TV101 - RIZ, Radio Industrija Zagreb;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
First YU TV model, based on Philips licence, close similar to Philips Leonardo. Model RIZ TV101 are the same to model TV102 and TV103
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Radovan Drobnjakovic. See "Data change" for further contributors.
