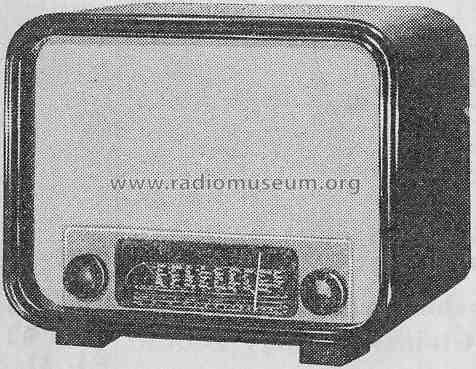

Rohde & Schwarz, PTE: AM/FM-Empfänger EST [Radio] ID = 311049 476x369
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM-Empfänger EST, Rohde & Schwarz, PTE; München

Country:  Germany
Manufacturer / Brand:  Rohde & Schwarz, PTE; München
alternative name

Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UCH42 UAF42 UAF42 UAF42 UAF42 UL41 UY41 U2410
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: AM/FM-Empfänger EST - Rohde & Schwarz, PTE; München
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 435 x 355 x 260 mm / 17.1 x 14 x 10.2 inch
Notes Instrument zur Abstimmungsanzeige.
Im VERG-Katalog ohne EST geführt.
Net weight (2.2 lb = 1 kg) 9.2 kg / 20 lb 4.2 oz (20.264 lb)
Price in first year of sale 485.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Kat.d. Rundf.Gr.Handel 1950/51
Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (5015)

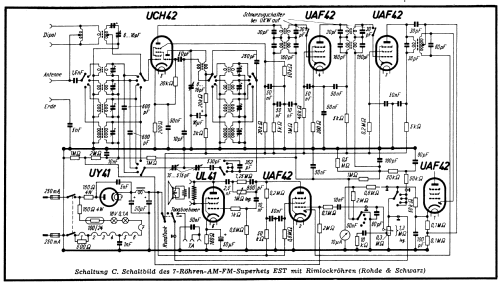

Literature/Schematics (1) -- Schematic
