Funk-Fernschreib-Betriebsgerät HS6090/1

Rohde & Schwarz, PTE; München

  • Year
  • 1965 ?
  • Category
  • Telephony - wire and wireless
  • Radiomuseum.org ID
  • 301972
    • alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz

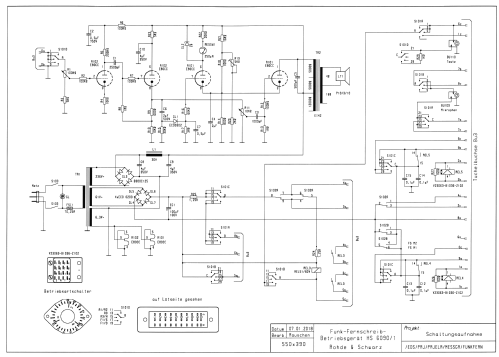

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • Audio-Amplification
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Funk-Fernschreib-Betriebsgerät HS6090/1 - Rohde & Schwarz, PTE; München
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 290 x 220 x 185 mm / 11.4 x 8.7 x 7.3 inch
  • Notes
  • Betriebsgerät zu einer Funkfernschreibstation der Bundeswehr, mit Abhörverstärker.

  • Net weight (2.2 lb = 1 kg)
  • 8.6 kg / 18 lb 15.1 oz (18.943 lb)
  • Author
  • Model page created by Manfred Rauschen. See "Data change" for further contributors.
