Leistungs-Mess-Sender SMLR BN41001/60

Leistungs-Mess-Sender SMLR BN41001/60; Rohde & Schwarz, PTE (ID = 2098939) Equipment Leistungs-Mess-Sender SMLR BN41001/60; Rohde & Schwarz, PTE (ID = 2098947) Equipment
Leistungs-Mess-Sender SMLR BN41001/60; Rohde & Schwarz, PTE (ID = 2098945) Equipment Leistungs-Mess-Sender SMLR BN41001/60; Rohde & Schwarz, PTE (ID = 2098940) Equipment

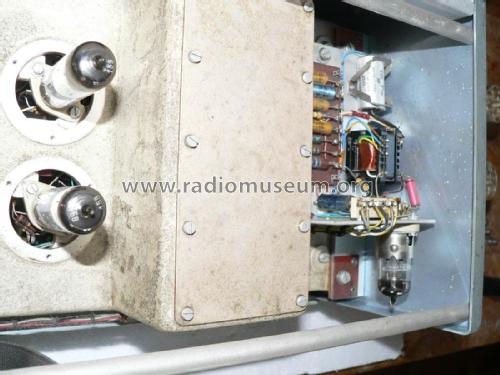

Leistungs-Mess-Sender SMLR BN41001/60; Rohde & Schwarz, PTE (ID = 2098941) Equipment Leistungs-Mess-Sender SMLR BN41001/60; Rohde & Schwarz, PTE (ID = 2098942) Equipment
Use red slider bar for more.

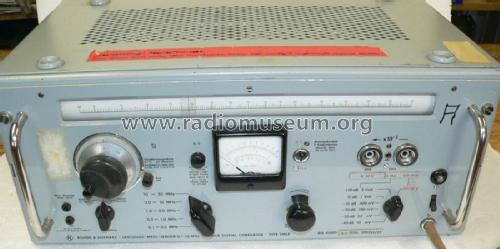

Leistungs-Mess-Sender SMLR BN41001/60; Rohde & Schwarz, PTE (ID = 2098939) Equipment
Rohde & Schwarz, PTE: Leistungs-Mess-Sender SMLR BN41001/60 [Equipment] ID = 2098939 1100x549
Select picture or schematic to display from thumbnails on the right and click for download.
For model Leistungs-Mess-Sender SMLR BN41001/60, Rohde & Schwarz, PTE; München

Country:  Germany
Manufacturer / Brand:  Rohde & Schwarz, PTE; München
alternative name

Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
Year: 1960 ?? Category: Service- or Lab Equipment
Valves / Tubes 4: EL803 EL803 EAA91 ECC81
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Leistungs-Mess-Sender SMLR BN41001/60 - Rohde & Schwarz, PTE; München
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 540 x 230 x 310 mm / 21.3 x 9.1 x 12.2 inch
Notes

Leistungs-Messsender SMLR  BN41001/60
0,1...30 MHz in 5 Teilbereichen. Ausgangspegel -60...-40/-30/-20/-10/0/+10 db an 60 Ohm. Eigenmodulation 1000 Hz, 30%. Fremdmodulation 30 Hz...10 kHz, 0...70%.

Gerät basiert auf dem Grundgerät SMLR mit Neuerungen.

Net weight (2.2 lb = 1 kg) 25.5 kg / 56 lb 2.7 oz (56.167 lb)

Model page created by Hans- Georg Tenz. See "Data change" for further contributors.
