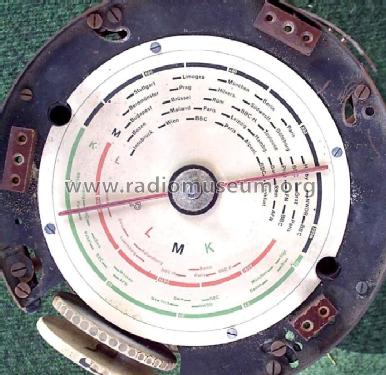

Rondo I Wunderland; Rondo GmbH, Willy (ID = 138001) Radio Rondo I Wunderland; Rondo GmbH, Willy (ID = 137999) Radio
Rondo I Wunderland; Rondo GmbH, Willy (ID = 138000) Radio Rondo I Wunderland; Rondo GmbH, Willy (ID = 138003) Radio
Rondo I Wunderland; Rondo GmbH, Willy (ID = 138004) Radio
Use red slider bar for more.
Rondo I Wunderland; Rondo GmbH, Willy (ID = 137998) Radio
Rondo GmbH, Willy: Rondo I Wunderland [Radio] ID = 137998 674x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rondo I Wunderland, Rondo GmbH, Willy Bürkle; Stuttgart-N (ab 1950 Ponti):
ebay: yorkimadel #6556741739

Country:  Germany
Manufacturer / Brand:  Rondo GmbH, Willy Bürkle; Stuttgart-N (ab 1950 Ponti)
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UY11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Rondo I Wunderland - Rondo GmbH, Willy Bürkle;
Material Special material, described in the notes.
Dimensions (WHD) 245 x 300 x 245 mm / 9.6 x 11.8 x 9.6 inch

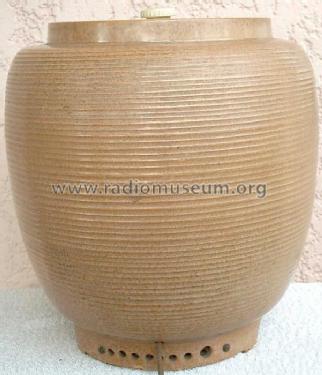

Notes Keramisches Vasen- oder Urnen-Radio.
Price in first year of sale 438.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Katalog Weide, 1949/50. / Radiokatalog Band 2, Ernst Erb
Mentioned in Funk-Technik (FT) (4923)
