Roma Ch= Grundig 8014R
Rosita, Theo Schmitz GmbH (Audion); Paderborn
- Country
- Germany
- Manufacturer / Brand
- Rosita, Theo Schmitz GmbH (Audion); Paderborn
- Year
- 1964/1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 336659
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- B250C75
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

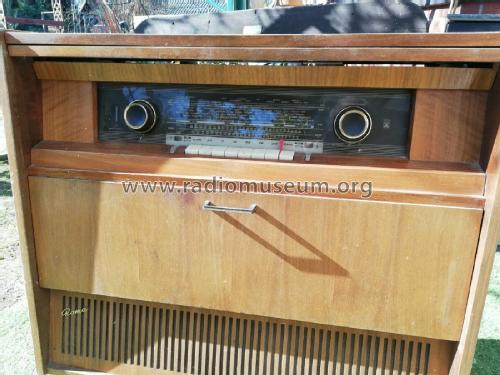

- Model: Roma Ch= Grundig 8014R - Rosita, Theo Schmitz GmbH
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 750 x 750 x 380 mm / 29.5 x 29.5 x 15 inch
- Notes
-
Rundfunk-Chassis = Grundig 8014R;
Phono-Chassis = Telefunken 506.Siehe auch ähnliches Modell Rosita Diadem Luxus.
- Net weight (2.2 lb = 1 kg)
- 32 kg / 70 lb 7.8 oz (70.485 lb)
- Author
- Model page created by Florian Henkel. See "Data change" for further contributors.
