Traviata

Traviata ; Rostocker Gerätebau; (ID = 749829) Radio Traviata ; Rostocker Gerätebau; (ID = 749832) Radio

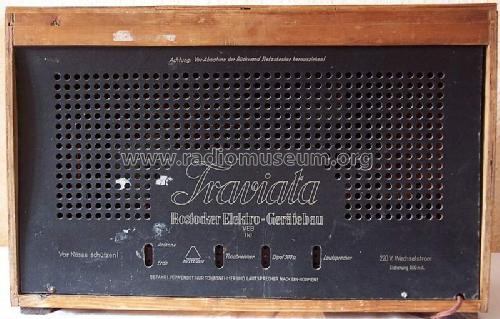

Traviata ; Rostocker Gerätebau; (ID = 749830) Radio Traviata ; Rostocker Gerätebau; (ID = 39003) Radio
Traviata ; Rostocker Gerätebau; (ID = 749833) Radio
Use red slider bar for more.
Traviata ; Rostocker Gerätebau; (ID = 749829) Radio
Rostocker Gerätebau;: Traviata [Radio] ID = 749829 800x604
Select picture or schematic to display from thumbnails on the right and click for download.
For model Traviata, Rostocker Gerätebau; Rostock (Ostd.)

Country:  Germany
Manufacturer / Brand:  Rostocker Gerätebau; Rostock (Ostd.)
alternative name

VEB(K) REG Rostocker Elektro-Gerätebau
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EF80 EF80 ECH81 EF85 EABC80 EL11 EM11 AZ11
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Traviata - Rostocker Gerätebau; Rostock
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 585 x 380 x 285 mm / 23 x 15 x 11.2 inch
Notes Nußbaum in heller oder dunkler Ausführung
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Source of data Gebrauchswaren-Katalog 1954 / Radiokatalog Band 2, Ernst Erb

Model page created by Steffen Bartusch. See "Data change" for further contributors.
